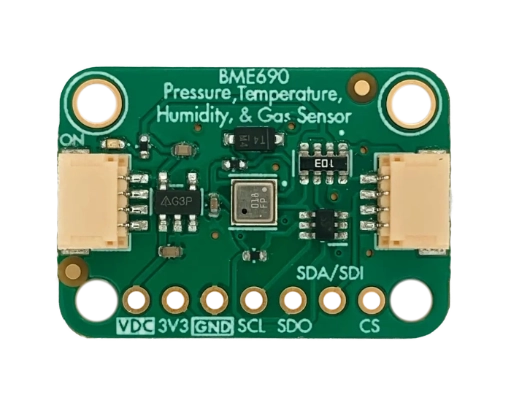

BME690 Environmental Sensor Breakout Board

Featuring one of the most advanced sensors in Bosch's lineup, the BME690 Breakout Board adds air quality measurement on top of environmental (temperature, humidity, and pressure) sensing. With features such as Volatile Organic Compounds (VOCs), Volatile Sulfur Compounds (VSCs), and other gases, the BME690 provides an excellent upgrade to the BME688, especially for high condensation environments. Accuracy and applications can be further fine-tuned using Bosch's BME AI-Studio to tune the BME690.

Loading...

Quantity:

Free shipping on orders over $100

Features and Specifications

Pressure, temperature, and humidity sensor.
VOC, VSC, and other gas sensor.
Resiliant in high condensation applications.
Tuning for specific use-cases using AI
Low power consumption, beneficial to battery powered designs.
Interface with I2C (QWIIC/Stemma Compatible) and SPI. Includes a 5V to 3.3V level shifter and 5V to 3.3V power regulator.
Lead-Free
Designed and assembled in the USA

Sensor Performance Breakdown:

Parameter	Range	Resolution
Temperature	-40°C to +85°C	±0.5°C
Humidity	0% - 100% RH	±3% RH
Barometric Pressure	300 - 1100 hPa	±0.12 hPa

The BME690 is designed for low-power applications and offers different power modes to optimize energy efficiency:

Mode	Average Current	Description
Sleep Mode	0.14 µA	The sensor is inactive, consuming minimal power until a measurement is triggered.
During Sensor Measurement	~750 µA	Temperature, Humidity, and Pressure Readings.

What's Included

BME690 Breakout Board
7 Male Header Pins
