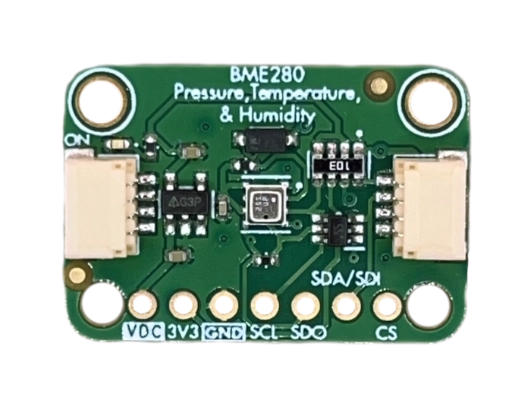

BME280 Environmental Sensor Breakout Board

The BME280 Breakout Board features the Bosch BME280 integrated environmental sensor - a combined pressure, humdity, and temperature sensor designed for mobile and wearable applications. Featuring three different power modes, the BME280 provides excellent performance while keeping power requirements low. Despite it's intent in mobile applications, the BME280 is also widely used in weather stations, IoT applications, and indoor climate control systems.

Loading...

Quantity:

Free shipping on orders over $100

Features and Specifications

Pressure, temperature, and humidity sensor
Low power consumption, beneficial to battery powered designs
Interface with I2C (QWIIC/Stemma Compatible) and SPI. Includes a 5V to 3.3V level shifter and 5V to 3.3V power regulator.
Lead-Free
Designed and assembled in the USA

BME280 Sensor Performance Breakdown:

Parameter	Range	Resolution
Temperature	-40°C to +85°C	±0.5°C
Humidity	0% - 100% RH	±3% RH
Barometric Pressure	300 - 1100 hPa	±0.12 hPa

BME280 Typical Power Consumption Estimates (See datasheet for full estimation):

Mode	Average Current	Description
Sleep Mode	< 0.1 µA	The sensor is inactive, consuming minimal power until a measurement is triggered.
Forced Mode	~0.6 mA	Takes a single measurement and returns to sleep mode to save power. Ideal for periodic readings.
Normal Mode	~1.8 mA	Continuously takes measurements at a defined interval, providing real-time data updates.

What's Included

BME280 Breakout Board
7 Male Header Pins
