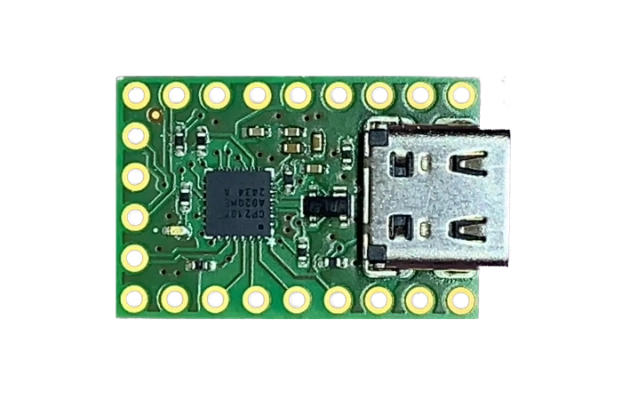

USB-C to UART (TTL) Serial Adapter

Easy to use for engineers and hobbyists alike, quickly establish communication with this USB-C to UART(TTL) serial adapter. Using the industry standard CP2102N, simply install the driver and you're good to go. Want more capability? SiLabs offers a simple configuration interface (Simplicity Studio) to add GPIO, clock output, and more. Head on over to our documentation site for schematics, tutorials, and more!

Loading...

Quantity:

Free shipping on orders over $100

Features and Specifications

Max transmission speed up to 3Mbaud
USB-C receptacle for common cable connections
Onboard 3.3V voltage regulator
5V output from USB, default 3.3V output logic (configurable to voltages lower than 3.3V), configurable GPIO, clock output, reset, hardware flow control pins RTS, CTS, DSR, DTR, and DCD
All pinouts needed to support RS-232, RS-422, and RS-485
Communicates with USB 2.0, compatible with USB 3.0
Onboard LED lights up after a serial port connection is made
Lead-free
Designed and assembled in the USA

Parameter	Value
Max Speed	3Mbaud
Logic Voltage	1.8V - 3.3V
Voltage Regulation	3.3V Output
Regulator Output	Up to 100mA

*Review CP2102N datasheet for specifics on IC parameters.

What's Included
