ISM330DHCX IMU Breakout Board

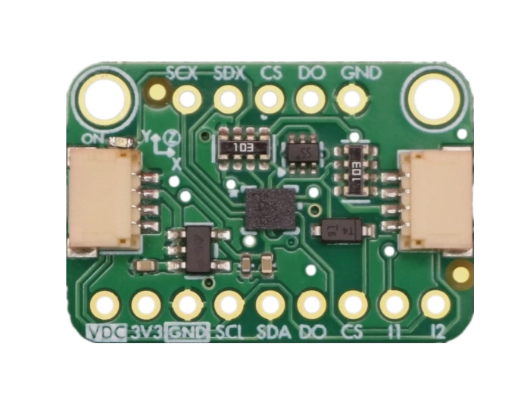

Front view of the ISM330DHCX breakout board

Add the power of machine learning in a MEMS formfactor with the ISM330DHCX Breakout Board. Featuring a scalable 3D digital accelerometer and scalable 3D digital gyroscope, the ISM330DHCX is perfectly suited for Industry 4.0 applications. Featuring a large sized FIFO, the ISM330DHCX can greatly improve power saving - sending burts of data when needed, reducing the polling burden. This breakout board includes an onboard level shifter, allowing users compatiblity with both 3.3V and 5V logic implementations.

Loading...

Quantity:

Free shipping on orders over $100

Features and Specifications

The ISM330DHCX provides reliable motion sensing with the following key features:

Acceleration measurement range: ±2/±4/±8/±16 g
Angular velocity measurement range: ±125/±250/±500/±1000/±2000 dps
High accuracy and low power consumption

Sensor Performance Breakdown:

Parameter	Range	Resolution
Acceleration	±2/±4/±8/±16 g	16-bit
Angular Velocity	±125/±250/±500/±1000/±2000/±4000 dps	16-bit

The ISM330DHCX is designed for low-power applications and offers different power modes to optimize energy efficiency:

Mode	Average Current	Description
Power-Down Mode	3 µA	The sensor is inactive, consuming minimal power until a measurement is triggered.
Low-Power Mode	5.5 - 32 µA	Optimized for battery-operated devices, providing a balance between power consumption and performance.
High-Performance Mode	1.5 mA	Maximized accuracy and performance for critical applications.

What's Included
